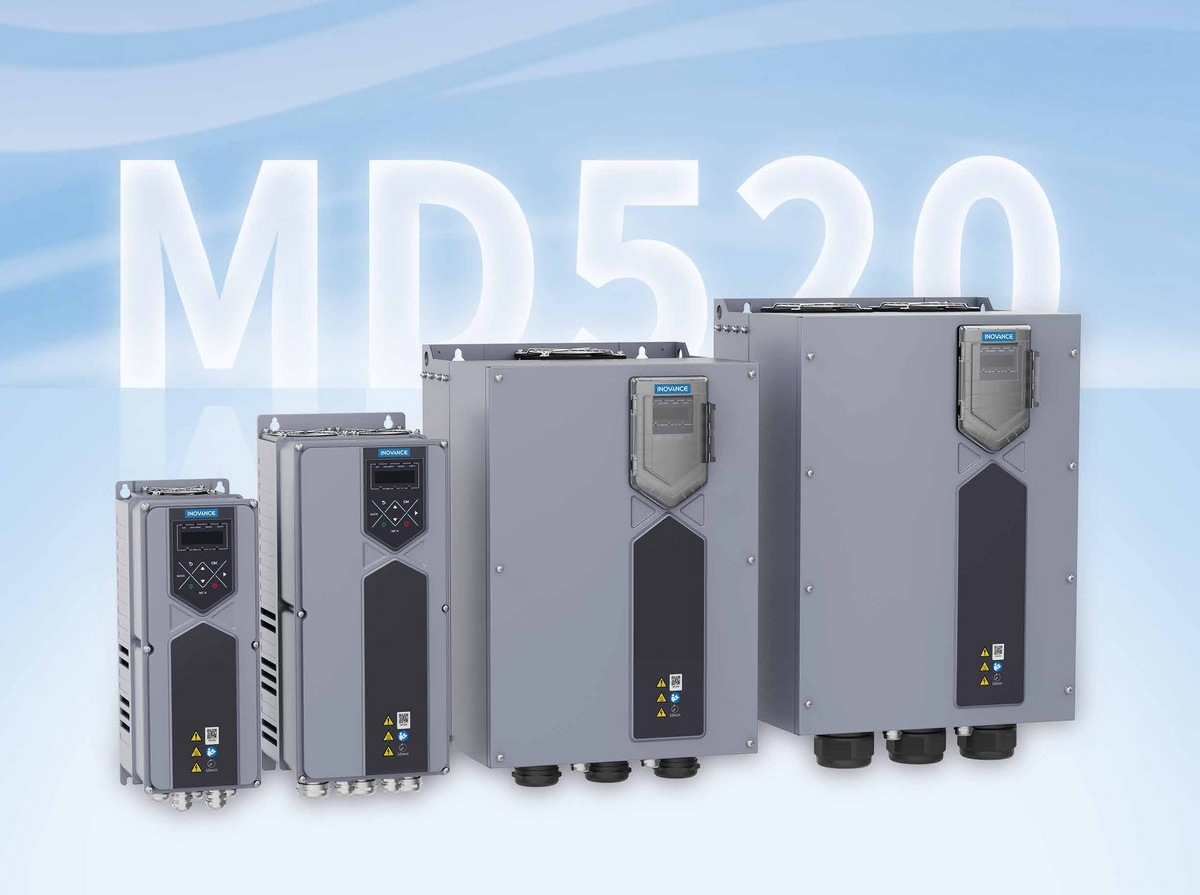

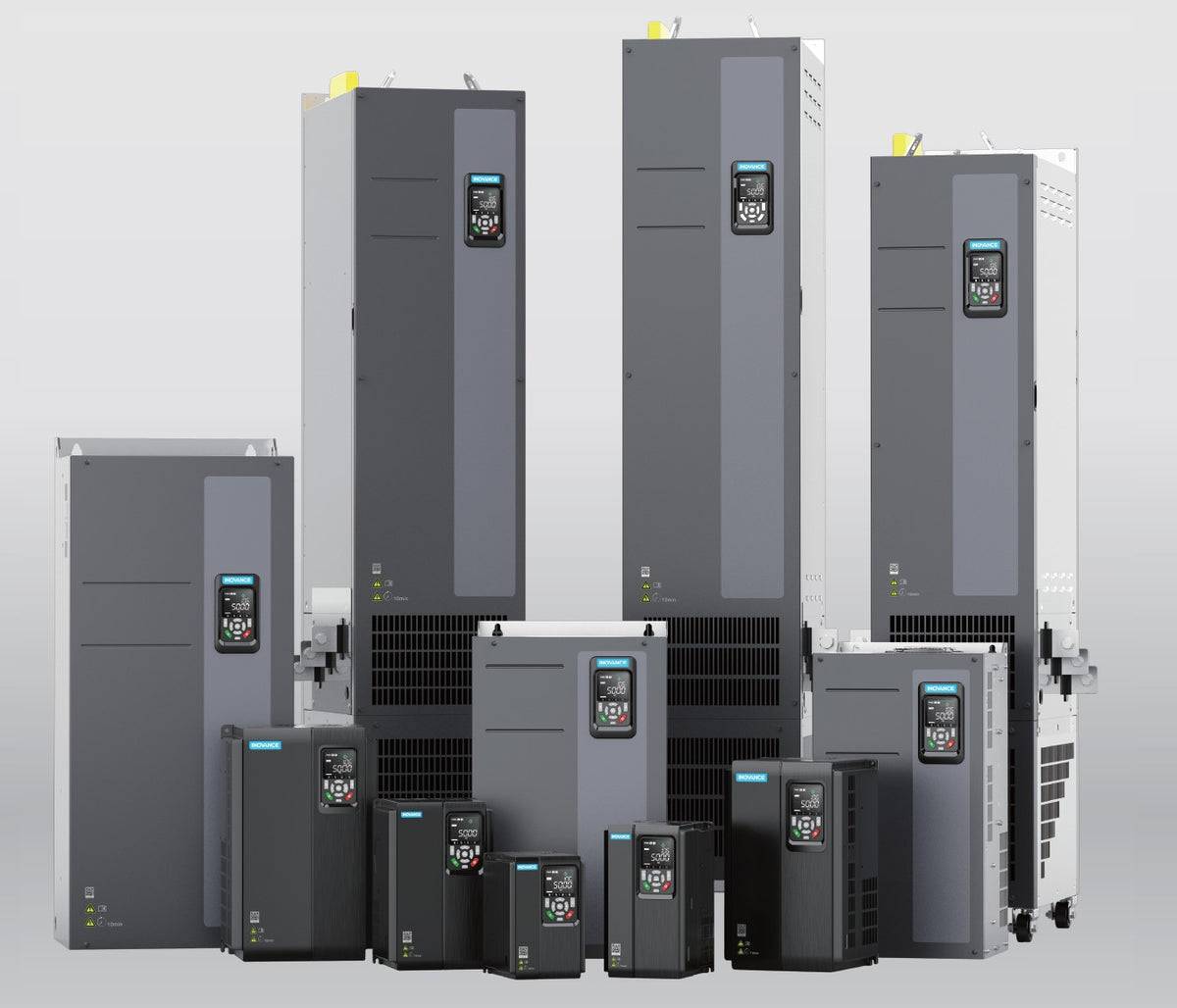

INOVANCE MD520 IP20/IP55

High performance universal AC drive

Modular design (1x Rectifier allow from 1 to 8 drives)

Unified AC asynchronous and PM synchronous motor control

Wide operating voltage and product range:
• 3 ph 380-480 Vac: 0.4 to 500 kW
• 3 ph 200-240 Vac: 0.4 to 75 kW
• 1 ph 200-240 Vac: 0.4 to 2.2 kW

Normal load: overload capacity is 110% of the rated output current for 60 seconds. No derating for light load at 50℃

Heavy load: overload capacity is 150% of the rated output current for 60 seconds. No derating for heavy load at 40℃

STO SIL 3 PL e
Built-in DC reactor (400 V: 18.5 kW and above;
200 V: 11 kW and above) complying to IEC 61000-3-12
Enhanced reliability: conformal coated PCBs compliant to 3S2 and 3C3 environments
Complies to efficiency level IE2 as defined in IEC 61800-9-2
Through-hole mounting options (0.4 to 160 kW)

Induction motor and PM synchronous motor control:
•Open loop V/F (induction motors only) and SVC
•Closed loop FVC
Dual rated: heavy duty (overload: 150%/ 1 min) and normal duty (overload: 110%/ 1 min)
Starting torque
•150% at 0.25 Hz for SVC
•180% at 0 Hz for FVC
Communication options:
•Modbus-RTU
•Modbus-TCP
•PROFIBUS-DP
•CANopen
•CANlink
•PROFINET
•EtherCAT
•Ethernet/IP

Category C2 compliance with external RFI filter. Ratings with built-in filter comply with Category C3*1
Built-in dynamic braking unit, up to/including 75 kW (400 V) or 37 kW (200 V)
Bipolar analog input as standard (-10 to +10 V)
PTC input as standard
Simplified parameters for easy start up
4 independent S-ramps
Flexible programmable I/Os
User programmable logic
Variable DC-injection braking
Comprehensive trip diagnostics
Output frequency: 599 Hz
Application dedicated functions:
•Master-slave function (torque, speed)
•Textile wobble control
Brake control logic
4 motor parameter sets
Automatic torque boost
PC-based software: simplified start up & backup

Service

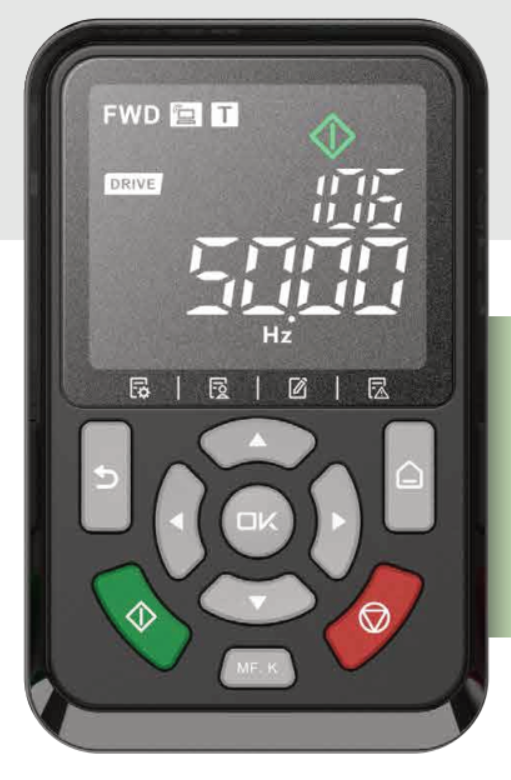

NEW: built-in colour LED keypad

■ The clearest possible information display
■ Displays multiple pieces of information
simultaneously (e.g. drive status and
operating information)
■ User friendly with additional keys

Optional Cards

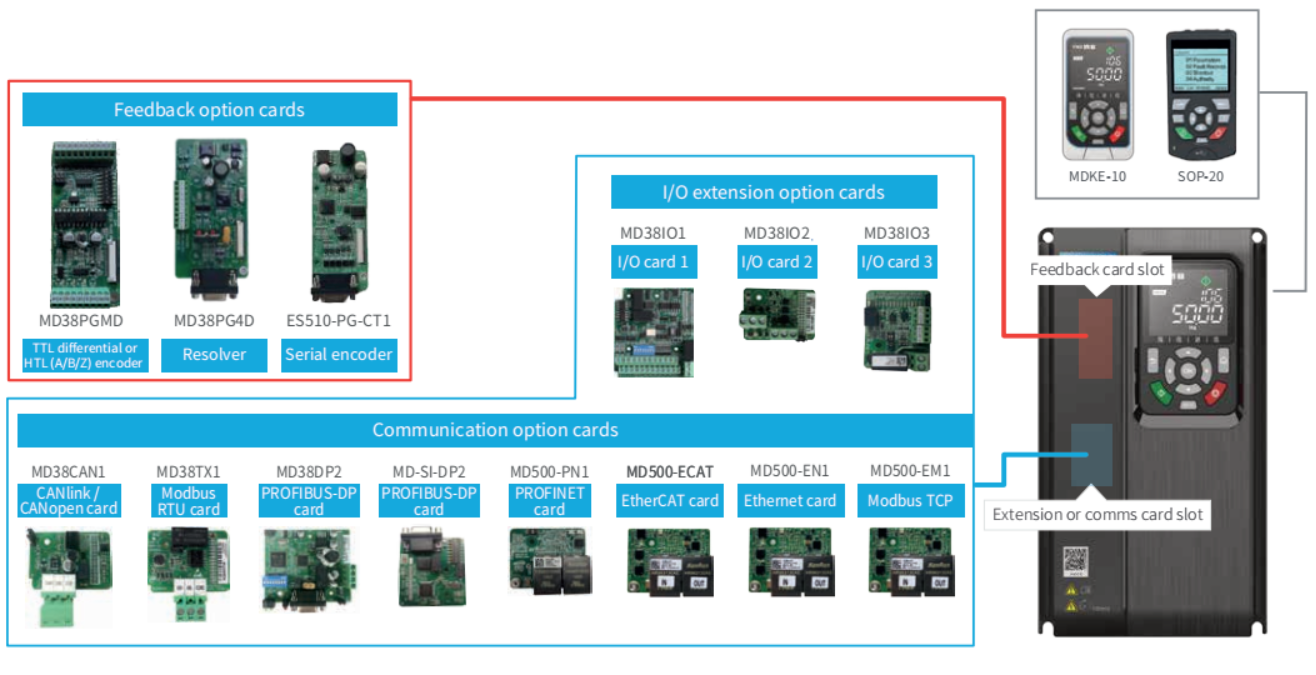

Option cards and mounting position

Communicaiton Cards:
MD38CAN1 - CANlink /CANopen card
MD38TX1 - Modbus RTU card
MD38DP2 - PROFIBUS-DP card
MD-SI-DP2 - PROFIBUS-DP card
MD500-PN1 - PROFINET card
MD500-ECAT EtherCAT card
MD500-EN1 - Ethernet card
MD500-EM1 - Modbus TCP
Feedback option cards：
MD38PGMD - TTL differential or HTL (A/B/Z) encoder
MD38PG4D - Resolver
ES510-PG-CT1 - Serial encoder
I/O extension option cards：
MD38IO1 - I/O card 1
MD38IO2 - I/O card 2
MD38IO3 - I/O card 3

PC software tools

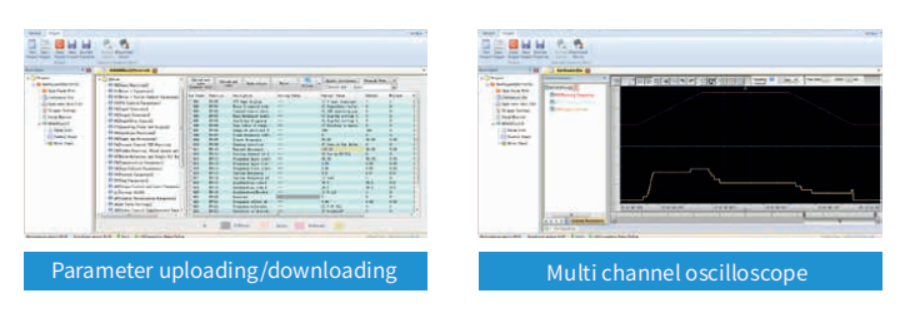

InoDriverShop

InoDriverShop is Inovance's free of charge PC-basedsoftware offering. It is based on a familiar Windows interface. InoDriverShop can upload and download drive parameters, and features a variety of other functions, such as areal-time oscilloscope. For the connection with the PC a standard USB toRS485 adapter can be used. MDKE-10 or SOP-20keypads can also be used for this purpose.
