Enquiry only due to high customization, reach out to sales@terautomation.com.au

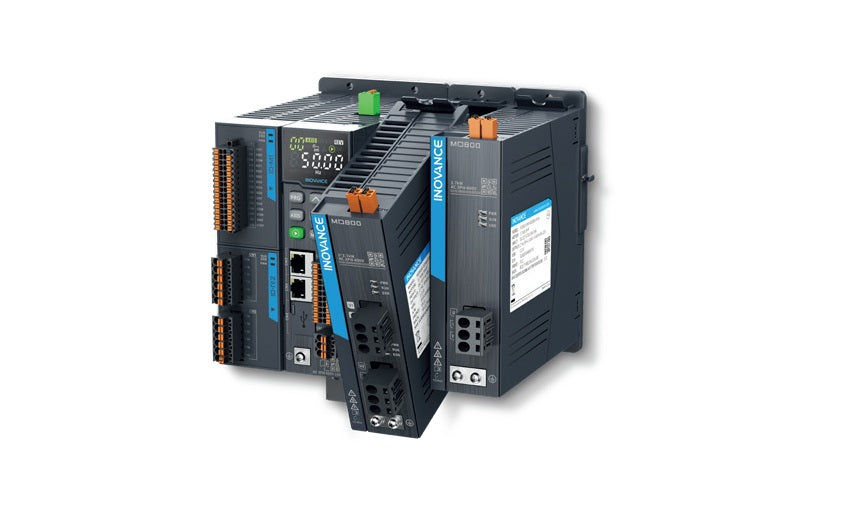

INOVANCE MD800 IP40 MultiDrives
Modular design (1x Rectifier allow from 1 to 8 drives)
STEP 1: Select the drives units
Single drive units
Motor AC 3PH 200-240V 0.2KW ~ 2.2KW Heavy duty (HD); 3PH 380-480V 0.4KW ~ 7.5KW HD
Dual drive units
Motor AC 3PH 200-240V 0.2KW ~ 2.2KW Heavy duty (HD); 3PH 380-480V 0.4KW ~ 3.7KW HD
Normal load: overload capacity is 110% of the rated output current for 60 seconds. No derating for light load at 50℃
Heavy load: overload capacity is 150% of the rated output current for 60 seconds. No derating for heavy load at 40℃
STEP 2: Select the rectifier units
If we know the application load of the mechanical application (best), OR the KW of the Drives unit (easier), combine the KW together, and select the rectifier unit.
The recitifier has options of Single Phase 200-240VAC verion that suits 3PH AC motors on 240VAC, or Three Phase 380-480VAC verion, both have options with ability to connect to braking resistors.
NOTE: 1x rectifier units can suit 4x Drive units (from 1 to 8 Drives)
TRICK: If the drives are running a machinery in sequence, we don’t need to sum them all up, we can evaluate the maximum application load running together and select the rectifier. The drives have the DC link coupled, if some drive driving the mechanical, the other drives are regenerative, we only need
to consider the overall demand from power side and select rectifier, always consider the worst-case scenario.
STEP 3: Know the accessories needed!
STO: The drives unit can be selected with integrated SIL3 STO.
Motor connection best practise: MD800-PBJ50M-W1 Single or dual drive unit cable support bracket allows motor shielding connection for best EMC practise
External IOs: Local resources: 4DI/4DIO/2AI/1RO; CAN + Modbus, Auxiliary +24 V input, Type-C debug port, Extension card slot x 2.
Optional IO card, relay cards, each rectifier unit has 2x expansion slots, shared with Comms.
Comms: PROFINET, EtherCAT, and Ethernet IP available, Modbus TCP (SI-EM in development)
HMI: SOP-20 Remote LCD keypad (inc. 3 m cable)
EMC: The product fulfills EMC C3, if EMC C2 (residential) is required, EMC filters can be added.
Service

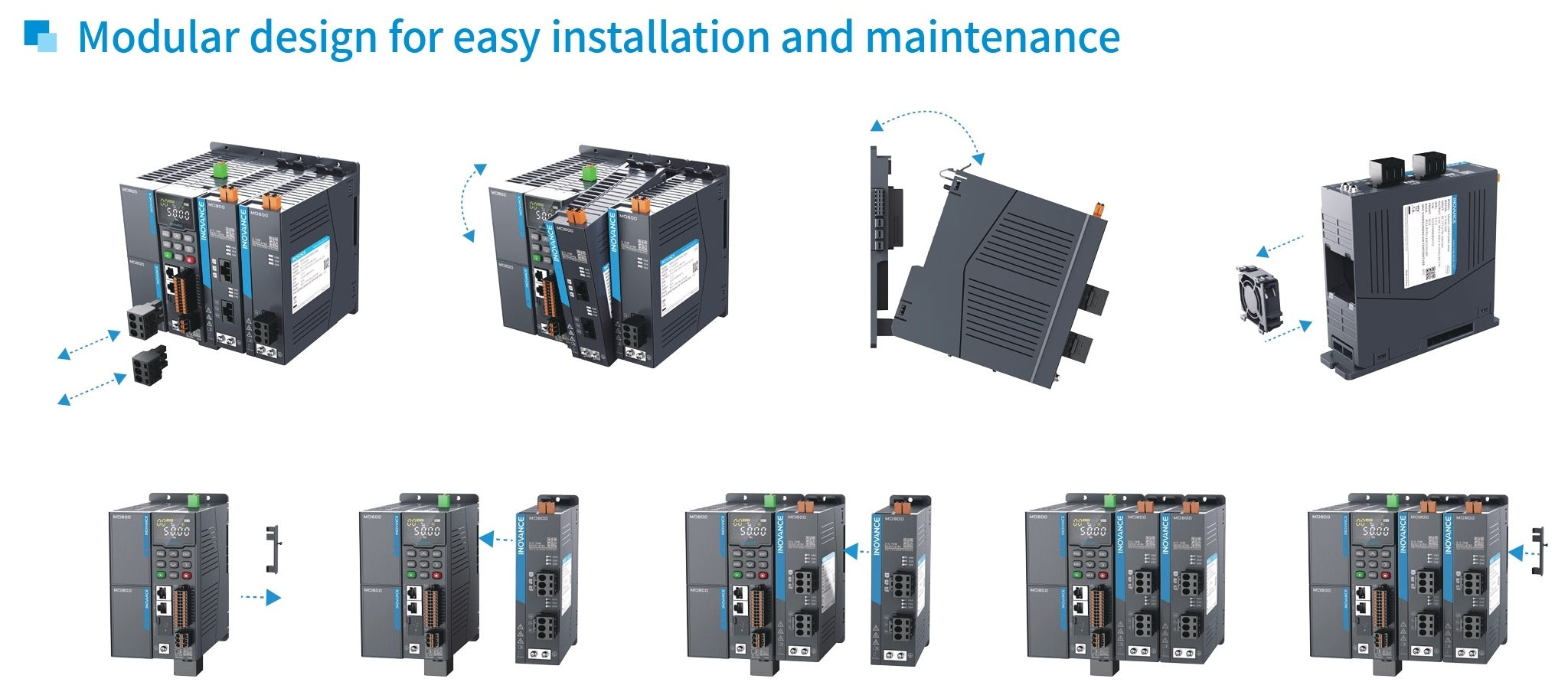

Click and Click
Easy to maintain. Not only the IOs, but also the Fans, the line cable, motor cable, STO connectors, and guess what, the drives unit itself, is simple Click-in and Click-out.

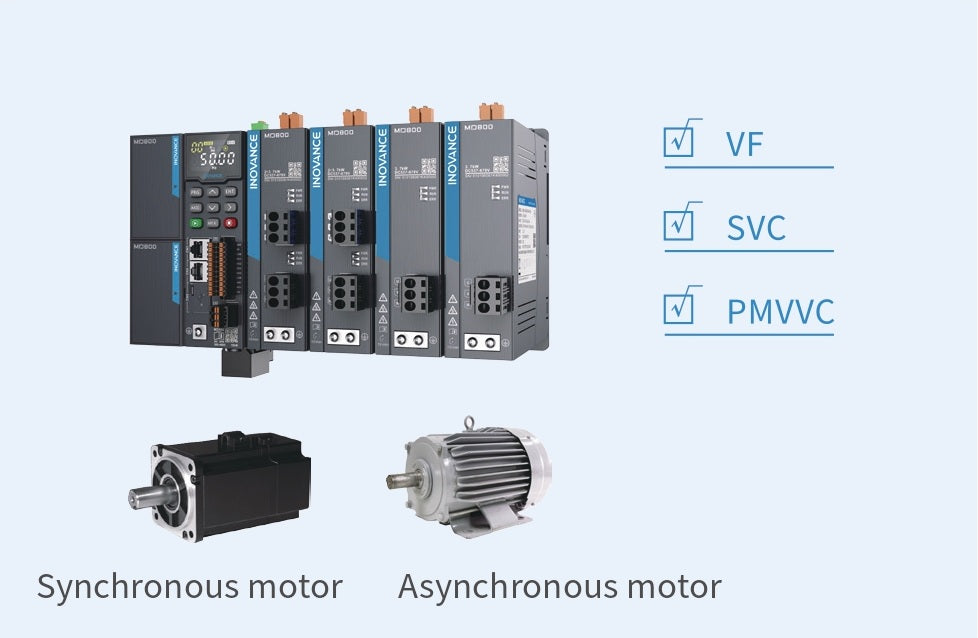

Motor Control
Individual motor control - High Performance
- Multiple built-in algorithms, including V/f, SVC, and PMVVC
- Induction motors (IMs) and permanent magnet (PM) motors supported
- PM high-speed application and speed tracking supported
Powerful
Comprehensive functionality
• Individual STO SIL 3 for each drive
• Suitable for open loop asynchronous
& PM synchronous motors
• +24 VDC control backup supply
• IP40 rated
• Remote LCD keypad (optional)
• Commissioning PC software available
• Dual rated: heavy duty (HD, G rating): 150% overload;
normal duty (ND, P rating): 110% overload

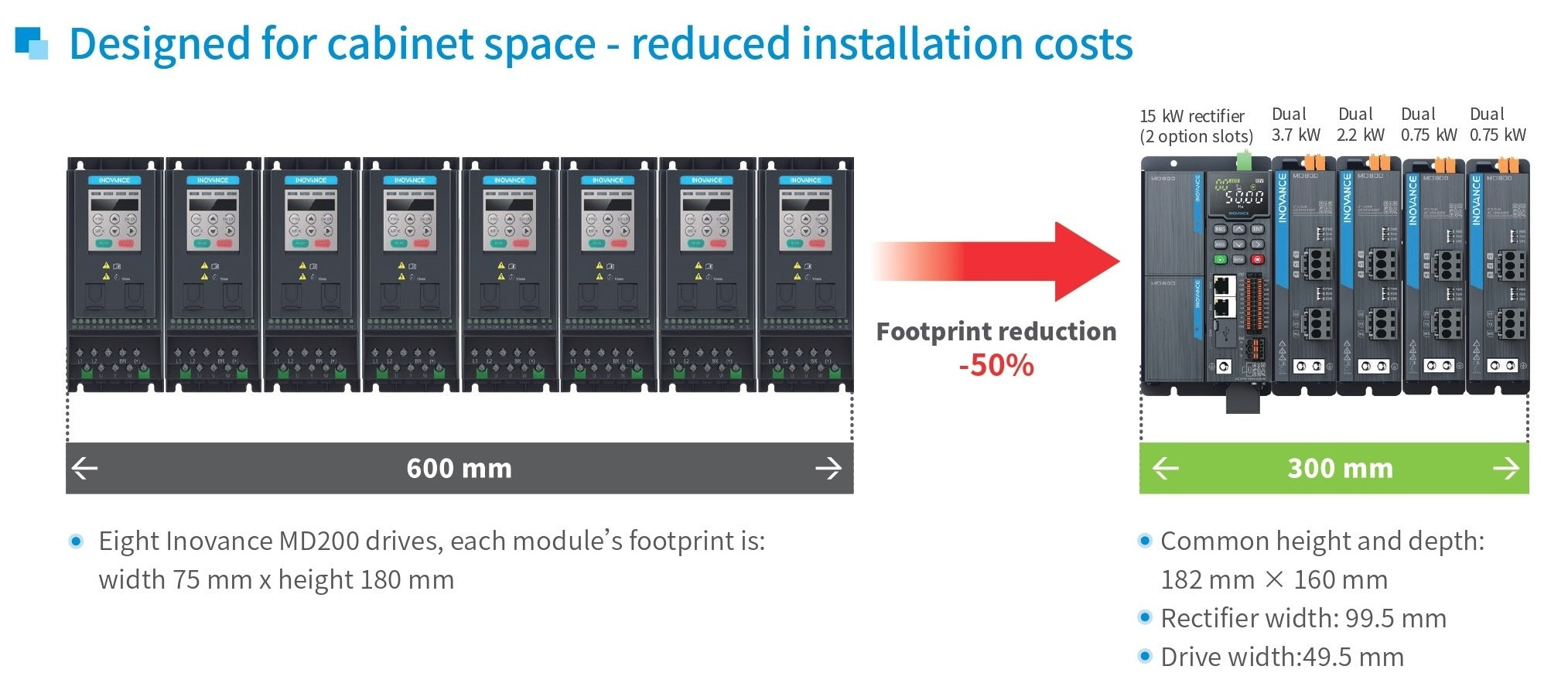

Space saving in cabinets
No Commodity, Just special
Ultimate space saving, without the rectifiers and chokes needed for each drive, the space saved is truely amazing. Thickened conformal coating, meeting the 3C3 and 3S2 environmental requirements, the device is also IP40, with back channel cooling.
Catalog
What is in the products to offer
Manual
How to use the product
Scrow down and select "Download" tab, filter by "Product Manual"
Drawing
Looking into detail and design
Scrow down and select "Download" tab, filter by "Drawing"
