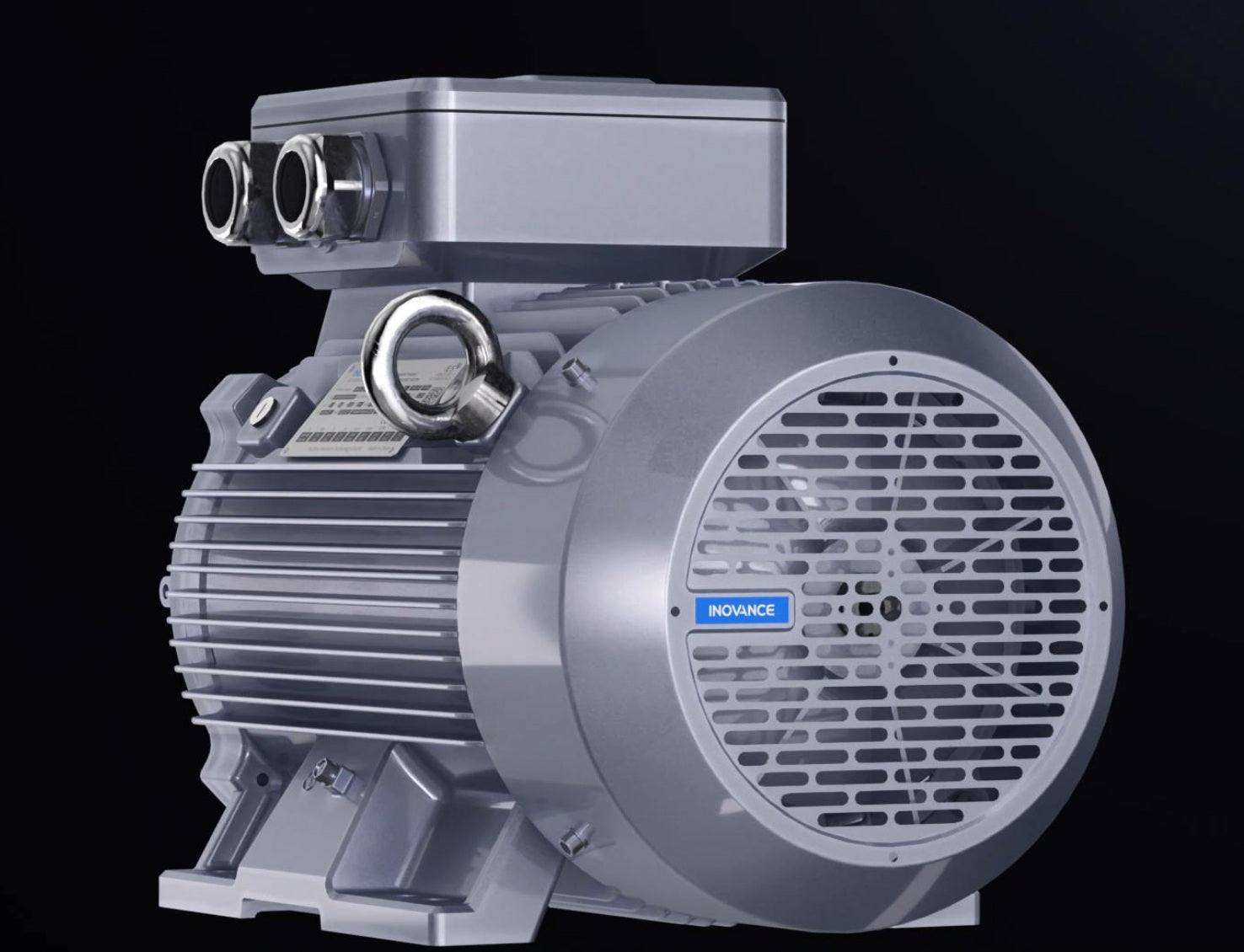

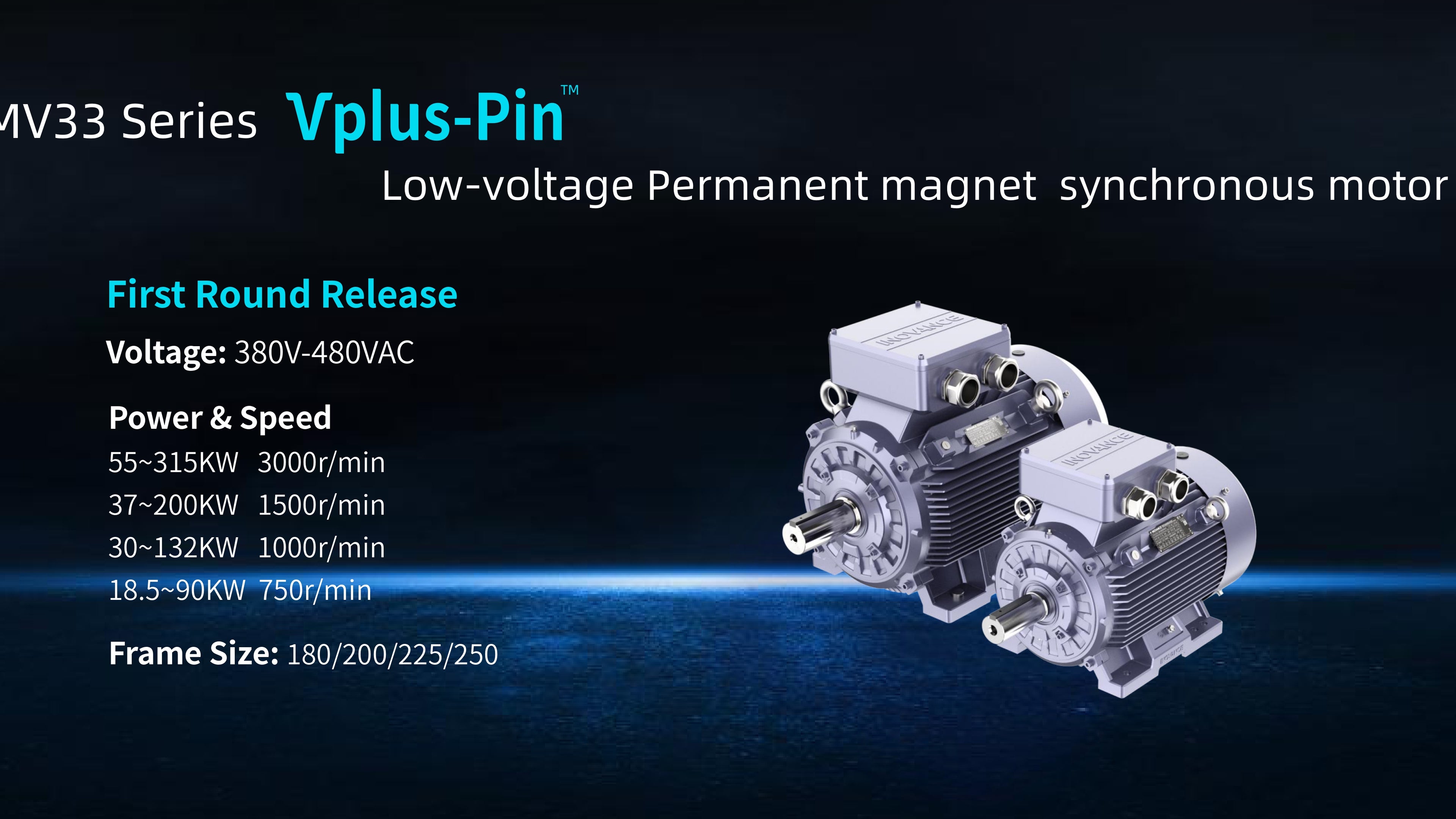

INOVANCE MV33 IP55 Low-voltage Permanent magnet synchronous motor (PMSM)
With technology from EVs, for industry
Single drive units
Voltage: 380V-480VAC
Power & Speed
55~315KW 3000r/min
37~200KW 1500r/min
30~132KW 1000r/min
18.5~90KW 750r/min
Frame Size: 180/200/225/250
High Efficient motor trends
Energy conservation and emission reduction must be given attention, and traditional motor IE3 is developing towards higher IE4/IE5 energy efficiency requirements.
Innovation of transmission chain
The trend of innovative transmission chains is to adopt efficient power transmission systems, which can reduce global energy consumption by up to 10%.

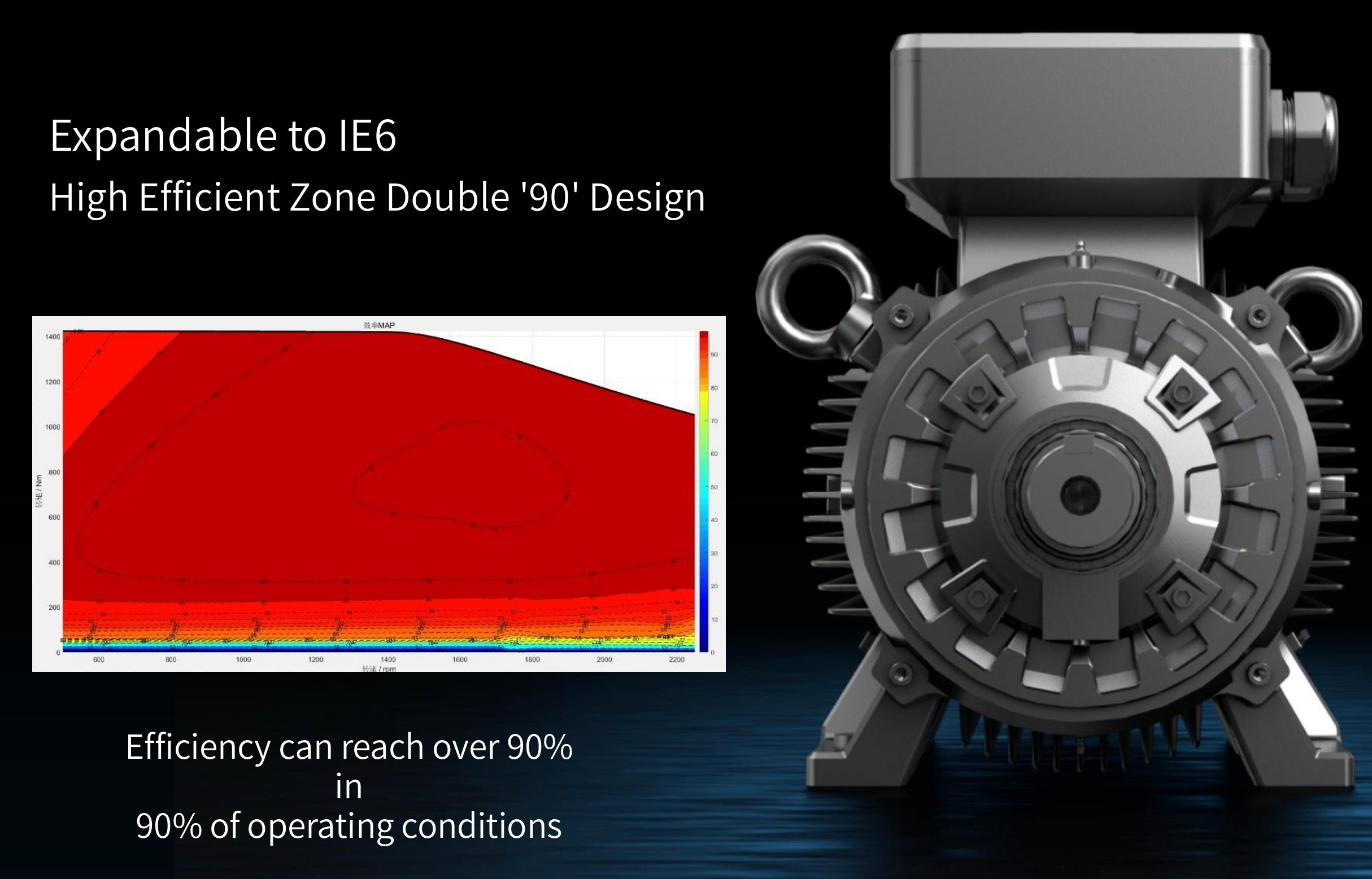

Expandable to IE6 High Efficient Zone Double '90' Design
Efficiency can reach over 90% in 90% of operating conditions

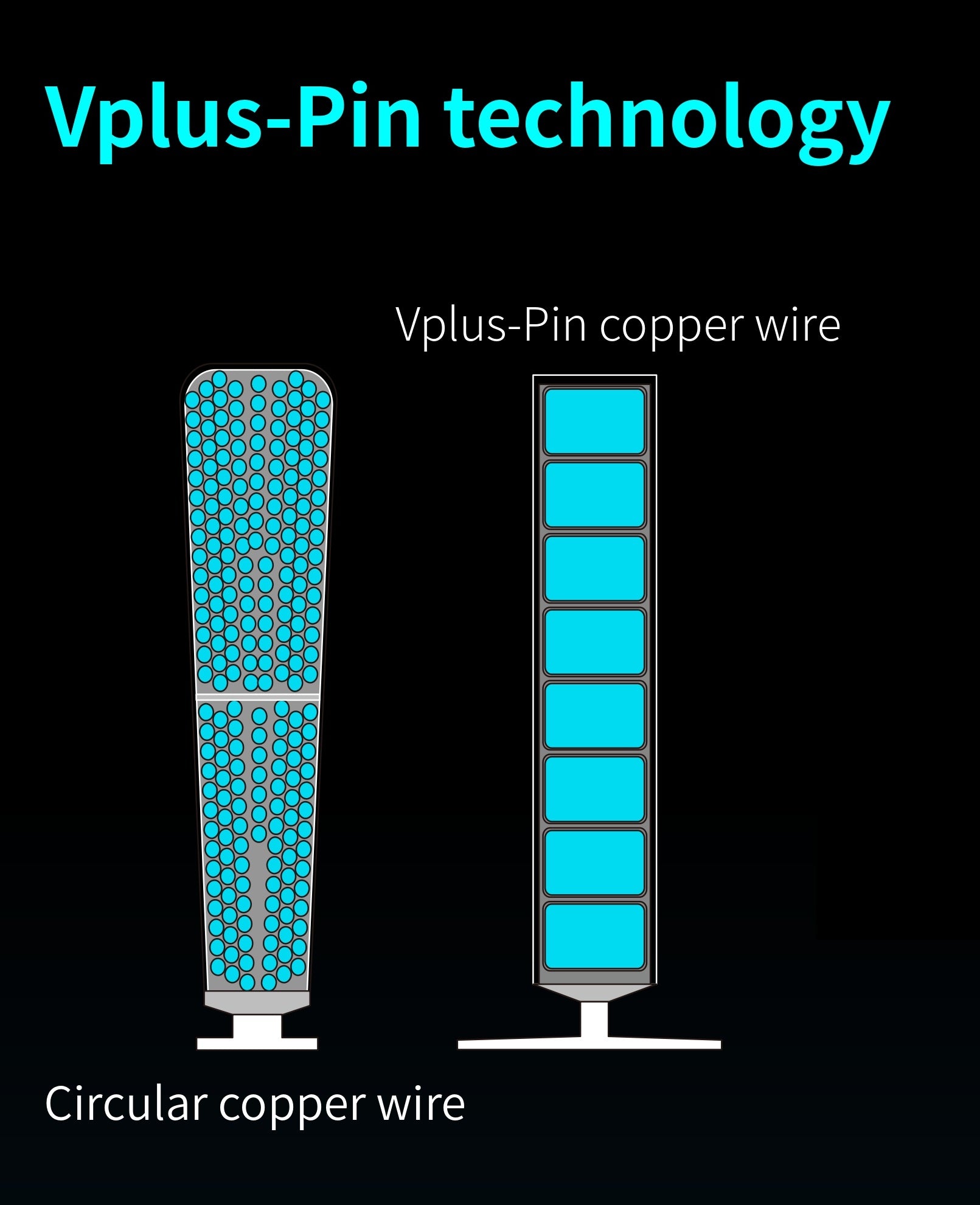

Vplus-Pin technology
Compact design, ultra-high energy efficiency Originating from Vplus-Pin technology
Slot copper filling rate increased＞20%

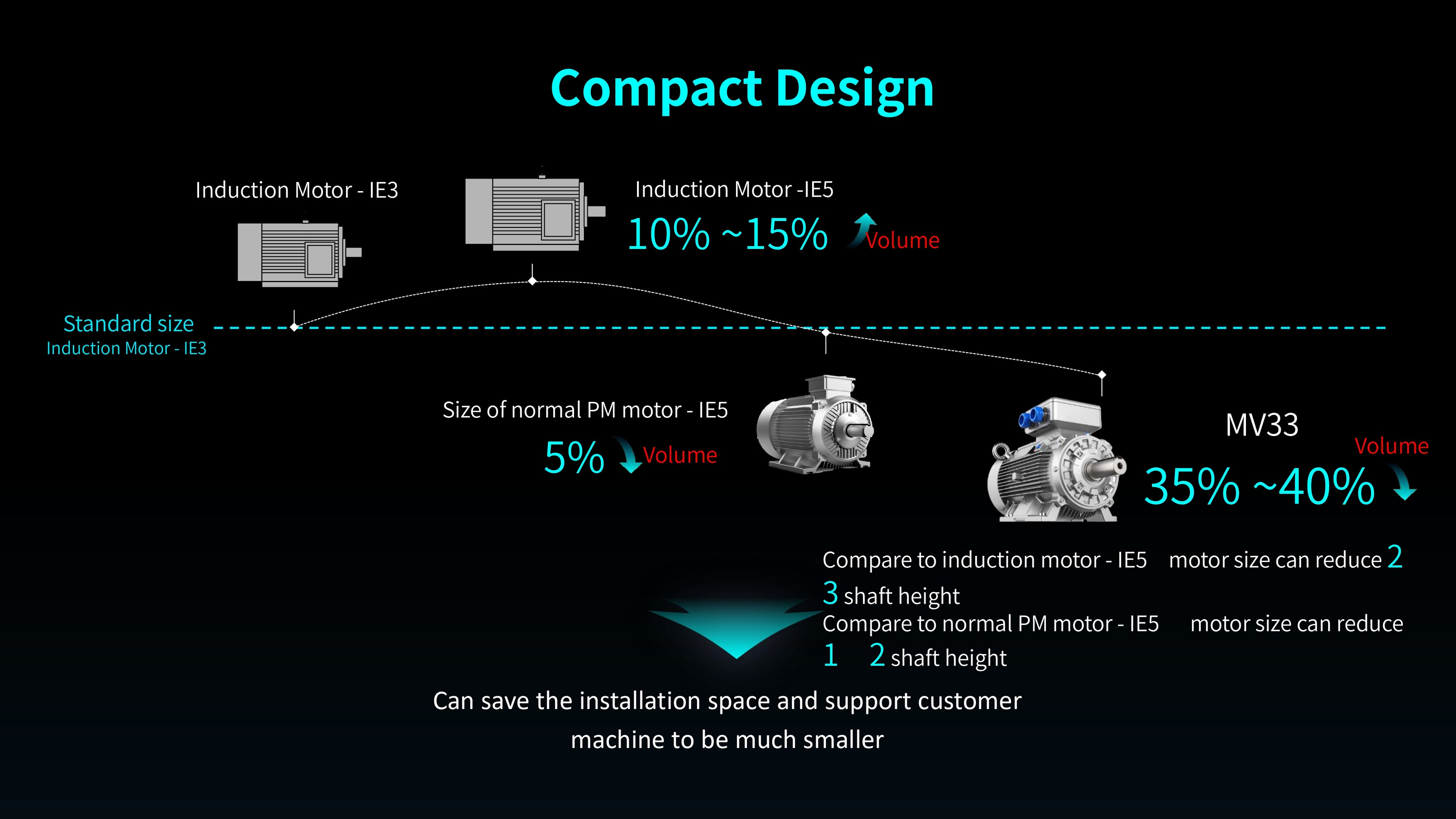

Compact Design

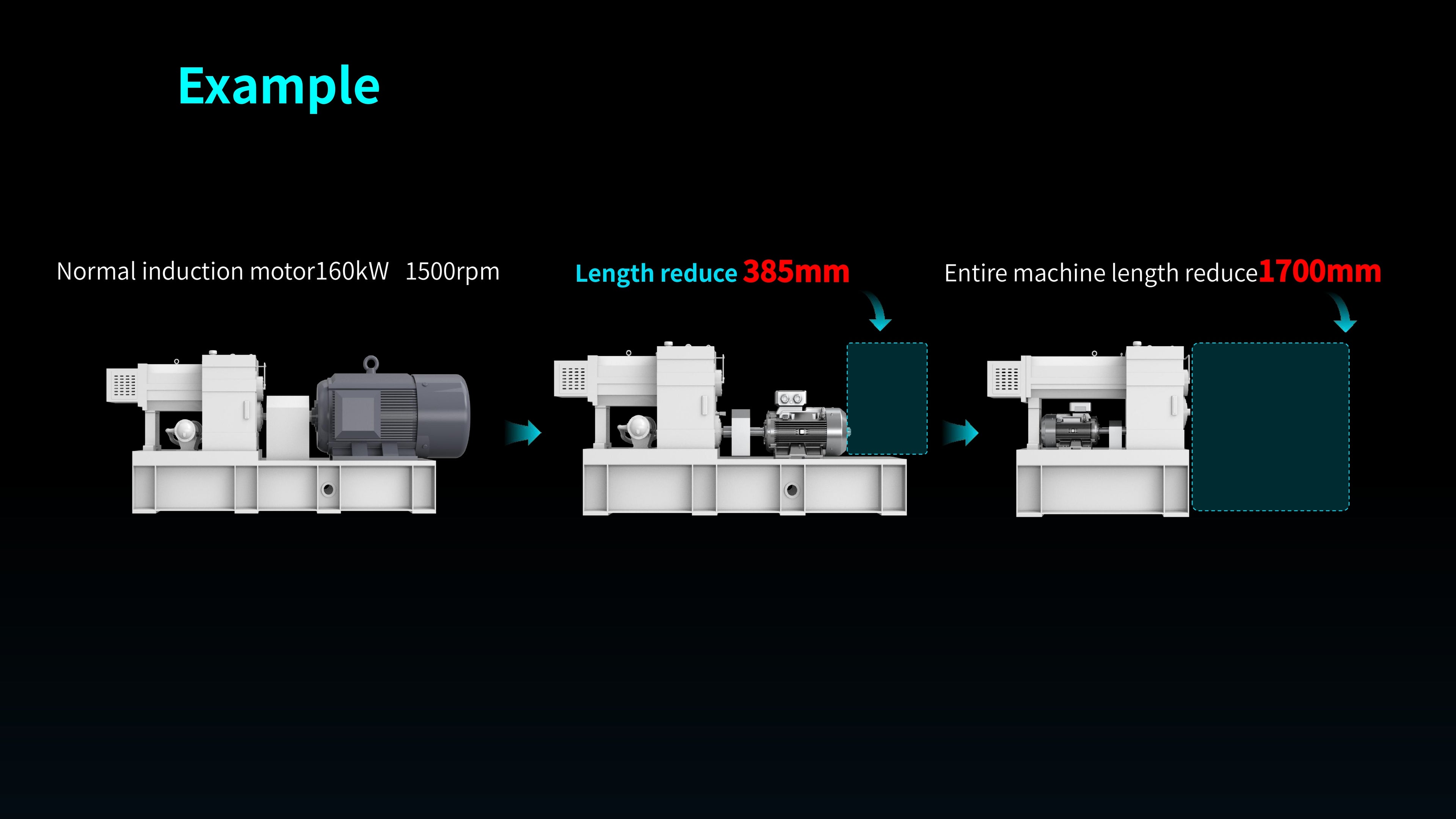

With the demand of more efficient motor, customer don't need to sacrifice on the dimension.
The MV33 motor can match and even reduce the frame for the same load.
Modular design
More than hundreds of optional options
Support the expansion of Strong and weak electrical separation junction boxes, forced air cooling, encoders, bearing types can select, moisture-proof heating strips, and multiple temperature sensors
Quality
Higher reliability and more stable operation
Bearing
Same bearing design as induction motor ≥110KW Anti axis current design
Insolation design
High performance Class H insulation
High temperature resistant materials
Anti demagnetization ability
Low temperature rise design of rotor Strict testing standards
Compliance
Global certification services for global customers

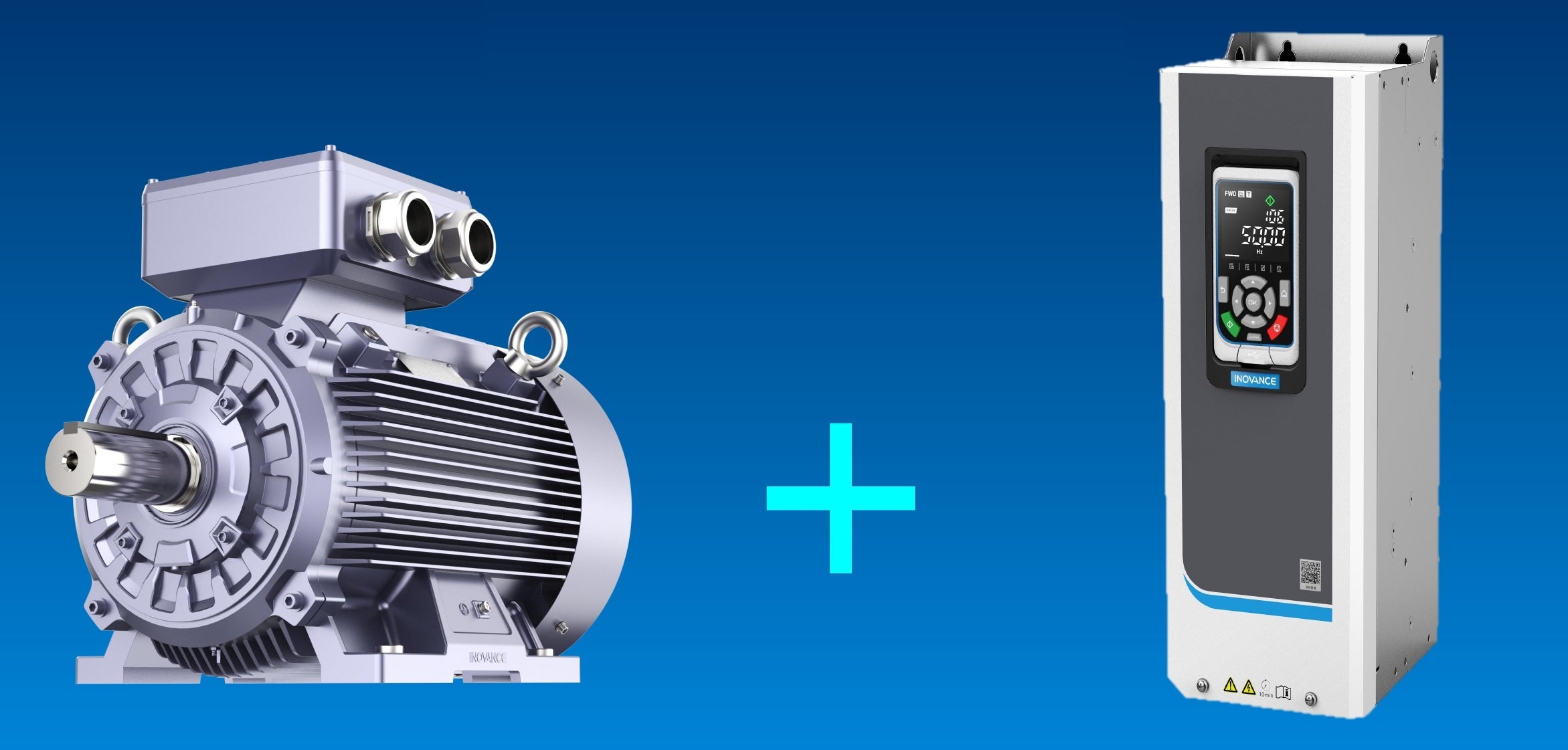

Proven Integration
Combine with INOVANCE drive optimize power system
Strong adaptability
Easy to tune and precise control
Improve system efficiency
