Project-based enquiry only.

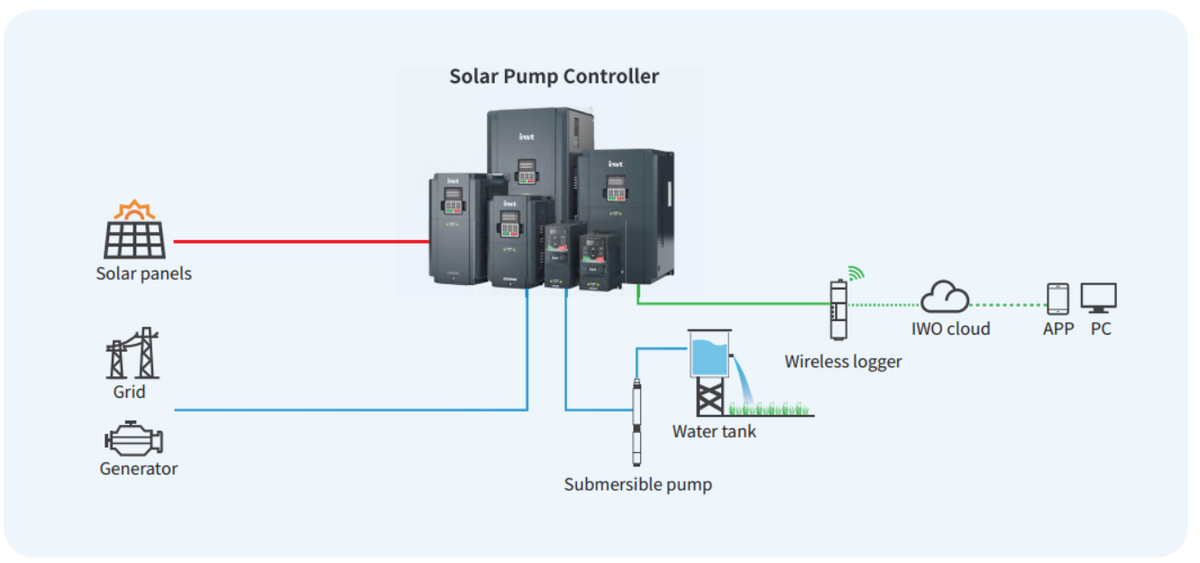

Application: Solar pumping application, to work in conjunction to Equivalent to no other
Dual inputs, PV and Grid/ Genset
Max. DC input 900V, AC input 380~440V up to 500KW
Max. DC input 500V, AC input 220~240V up to 7.5KW
Protection function
Pump dry run protection (low load protection)Over/low voltage protection Over load protection Lightning and surge protection Over tempereture protection Lose phase protectio
Advanced MPPT algorithms
MPPT software up to 99% efficiency
Support multiple pumps
Support 220V, 1 phase AC pump with and without capacitor
Hybrid and Auto-switch function
Support AC & PV input together, AC bypass function.
GPRS remote control
Support 4G,WIFI module, which can remote monitor the controller through mobile phone and web browser.
Product for high protection level
Support cabinet product for IP54 protection level
Support multiple sensor
Support controlling the controller through radiation sensors and water level sensor
For constant flow

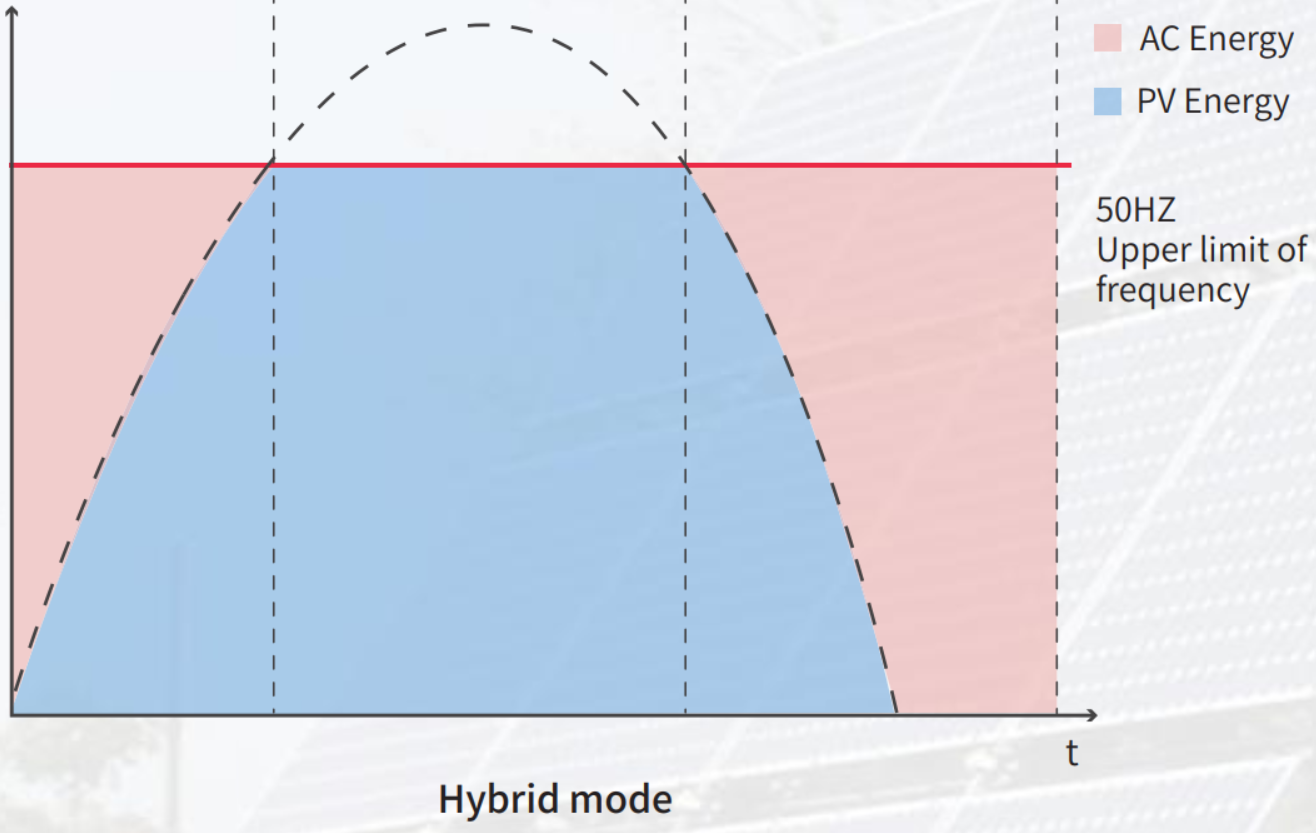

Hybrid mode
In hybrid mode, GD100-PV will use the energy of both PV modules and grid (or generator) at same time. The stronger
the light radiation, the less AC energy is consumed. As the radiation reduction, the consumption of AC energy will increase to maintain the output.
For filling a tank

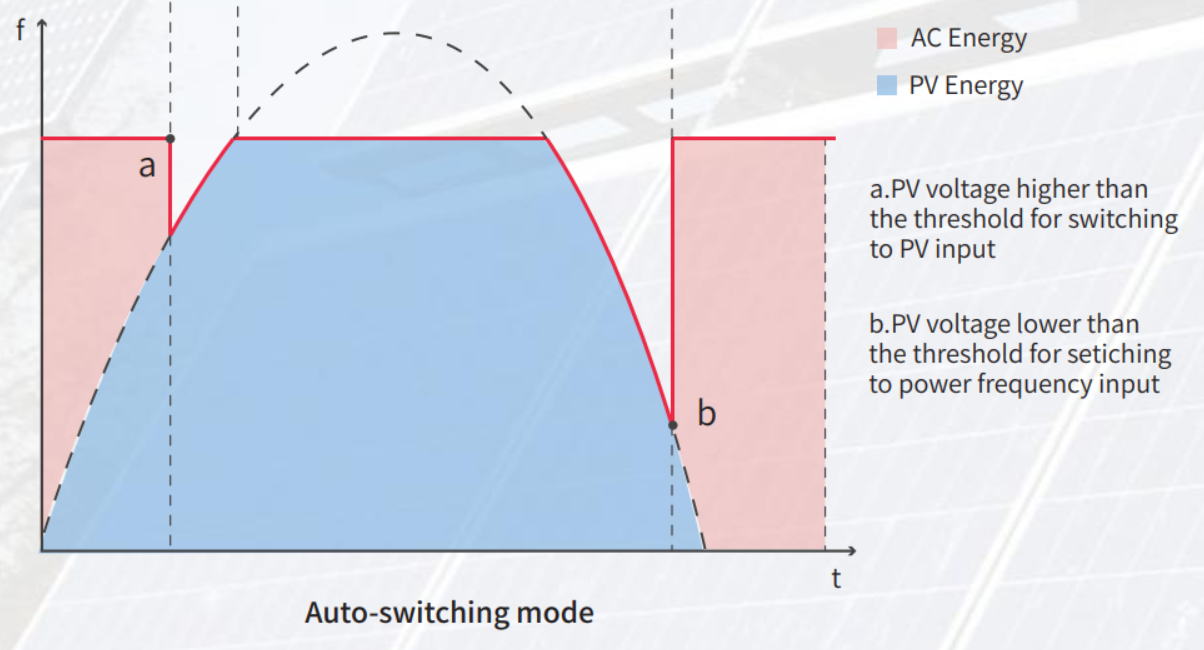

Hybrid mode Auto-switching
If don't need to run at full high frequency at all times, you can choose to configure an auto-switch module. It can monitor the PV
voltage, and when the voltage is below the set threshold, it can control the contactor to act and connect AC power to meet energy
needs. When the voltage on the PV side exceeds the set threshold, the contactor can be controlled to operate and disconnect the AC power to reduce energy consumption.
Catalog (IP20)
What is in the products to offer
Catalog (IP66/54)
What is in the products to offer
Application Note
How to use the product
